• Country
• Japan

• Manufacturer / Brand
• Hitachi Ltd.; Tokyo

• Year
• 1983

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 208893

• • alternative name: Hitachi Sales Corp. of America

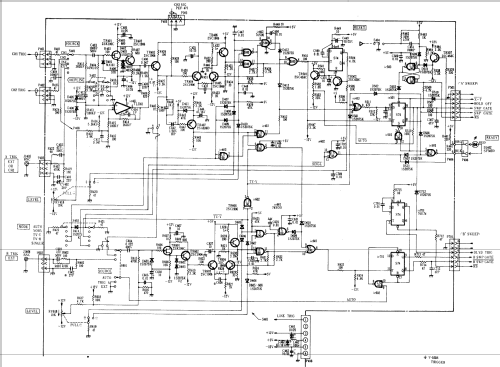

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 150BCB31

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100; 120; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscope V-550B - Hitachi Ltd.; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 310 x 180 x 410 mm / 12.2 x 7.1 x 16.1 inch

• Notes
• Power supply frequency 50, 60 or 400Hz; 2X DC to 50 MHz; 6" square screen; triple trace mode; Delayed sweep; Autofocus.

• Net weight (2.2 lb = 1 kg)
• 9.3 kg / 20 lb 7.8 oz (20.485 lb)

• Mentioned in
• Funkschau (1/1983, S. 53 /Kurzbericht)

• Literature/Schematics (4)
• -- Schematic

• Author
• Model page created by Danko Tkalec. See "Data change" for further contributors.
