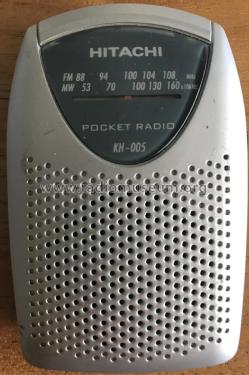

Pocket Radio KH-005
Hitachi Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Hitachi Ltd.; Tokyo
- Year
- 2010 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 301366
-
- alternative name: Hitachi Sales Corp. of America
- Number of Transistors
- Semiconductors

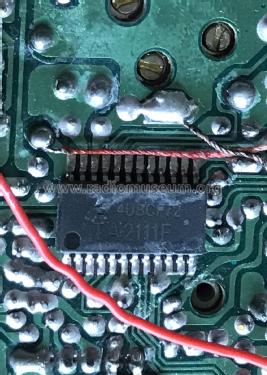

- TA2111
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / AAA: 2 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Pocket Radio KH-005 - Hitachi Ltd.; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 60 x 90 x 22 mm / 2.4 x 3.5 x 0.9 inch
- Notes
-
Hitachi Pocket AM-FM Radio Model KH-005 uses one IC. The weight withour batteries is 57 grams!
Tuning Range approximately 535 - 1605 kHz plus FM 88 to 108 MHz0.
Made in China for Europe.
- Net weight (2.2 lb = 1 kg)
- 0.057 kg / 0 lb 2 oz (0.126 lb)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
