Radio-Weckuhr KC-772 E
Hitachi Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Hitachi Ltd.; Tokyo
- Year
- 1973
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 136680
-
- alternative name: Hitachi Sales Corp. of America

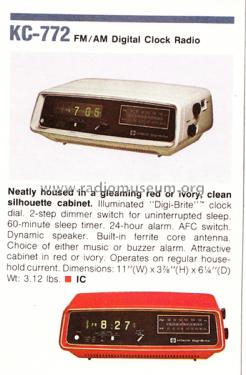

Original prospekt in 1973.

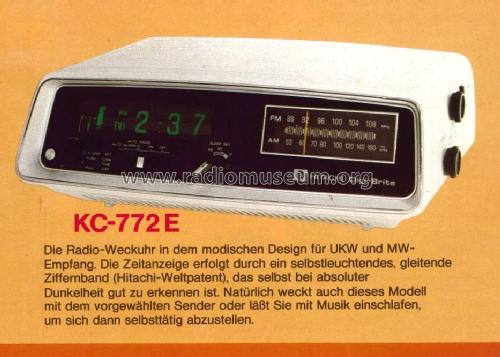

Hitachi Katalog
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
- Power out
- 0.6 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Radio-Weckuhr KC-772 E - Hitachi Ltd.; Tokyo
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 280 x 100 x 160 mm / 11 x 3.9 x 6.3 inch
- Notes
- 2 IC-s.
- Net weight (2.2 lb = 1 kg)
- 1.4 kg / 3 lb 1.3 oz (3.084 lb)
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
