• Country
• Japan

• Manufacturer / Brand
• Hitachi Ltd.; Tokyo

• Year
• 1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 148268

• • alternative name: Hitachi Sales Corp. of America

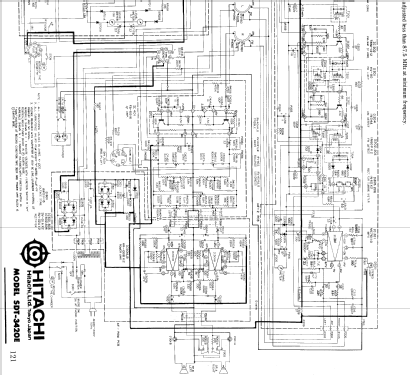

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

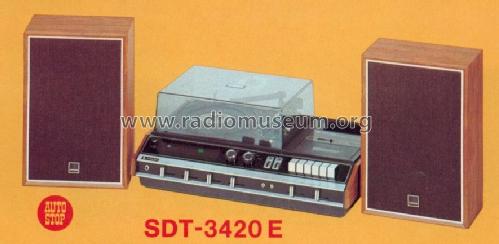

• Model: SDT-3420E - Hitachi Ltd.; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 514 x 102 x 350 mm / 20.2 x 4 x 13.8 inch

• Notes
• ICs: 10
  Stereo-Anlage mit 2-Band-Radio, Phono-Kassetten-Kombination und 2 LS-Boxen (Breitbandsystem 160 mm, 241×356×140 mm, 1,9 kg).
  Plattenspieler mit 10-er Wechsler.
  Anschlüsse: Kopfhörer, Außenantenne, Normbuchse, Phono.

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.

• Other Models

• Here you find 1057 models, 947 with images and 242 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Hitachi Ltd.; Tokyo
