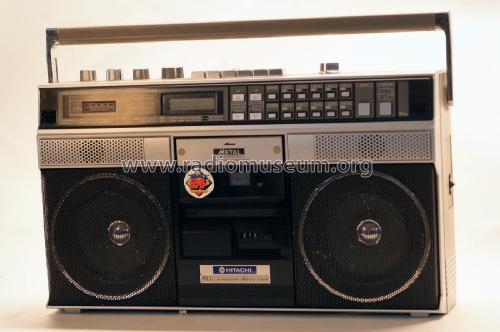

Stereo Cassette Recorder TRK-7990E

Hitachi Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1985 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 358509
    • alternative name: Hitachi Sales Corp. of America

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 220 / 12 / D: 8 x 1.5 & for memory AA: 2 x 1.5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Cassette Recorder TRK-7990E - Hitachi Ltd.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 470 x 278 x 130 mm / 18.5 x 10.9 x 5.1 inch
  • Notes

  • LW/MW/SW/UKW Cassette Recorder in "Ghetto Blaster" design, PLL tuner with digital display, tuning ranges 153 - 279 / 522 - 1611 / 5'800 - 15'500 kHz AM, 87.5 - 108 MHz FM; line in jack.

    Powered by 220 V mains or eight UM-1 Batteries and additional two UM-3 Batteries for station memories and timer / clock operation.

  • Author
  • Model page created by Martin Bösch. See "Data change" for further contributors.
