Stereo Cassette Tape Deck D-3300M

Hitachi Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1980/1981
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 194033
    • alternative name: Hitachi Sales Corp. of America

 Technical Specifications

  • Number of Transistors
  • 71
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Tape Deck D-3300M - Hitachi Ltd.; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 435 x 165 x 256 mm / 17.1 x 6.5 x 10.1 inch
  • Notes

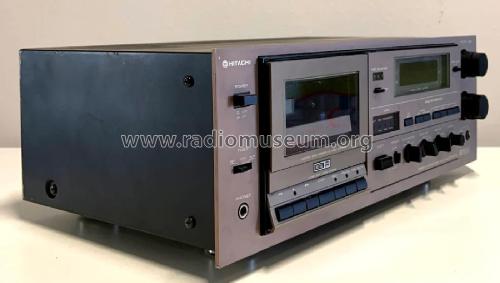

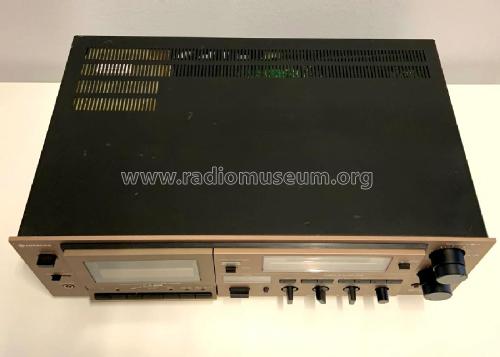

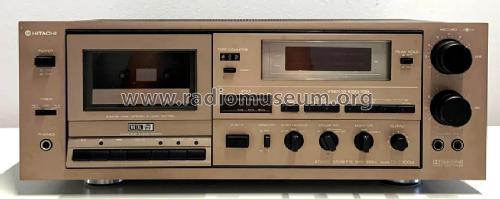

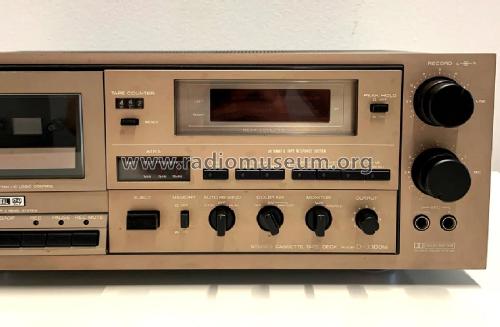

  • Front loading Stereo Cassette Deck Model Hitachi D-3300M

    Type: 3-head, single compact cassette deck
    Track System: 4-track, 2-channel stereo
    Tape Speed: 4.75 cm/s
    Heads: 1 x combination record/playback, 1 x erase
    Motor: 1 x uni-torque, 1 x DC
    Tape Type: type I, CrO2, FeCr, Metal
    Noise Reduction: B
    Frequency Response: 20Hz to 22kHz  (Metal tape)
    Signal to Noise Ratio: 69dB  (dolby B)
    Wow and Flutter: 0.023%
    Total Harmonic Distortion: 1.0%
    Input: 85mV (line), 0.5mV (mic)
    Output: 0.775V (line)

    Semiconductors: 20 x IC, 71 x transistors, 2 x FET, 85 x diodes, 15 x LED

    Price in Italy in 1980: 790.000 ITL.

  • Net weight (2.2 lb = 1 kg)
  • 8.7 kg / 19 lb 2.6 oz (19.163 lb)
  • Mentioned in
  • Discoteca HiFi, Anno XXI, n. 208-209, Agosto-Settembre 1980, Italy
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
