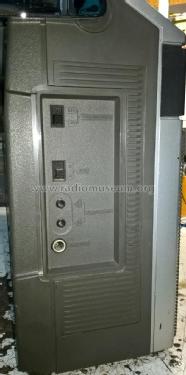

Stereo Radio Cassette Recorder TRK-8270W
Hitachi Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Hitachi Ltd.; Tokyo
- Year
- 1980 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 298286
-
- alternative name: Hitachi Sales Corp. of America
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF ?/10700 kHz
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / AC 50/60 Hz: 100-110; 115-127; 200-220; 230-250 / DC 12 / 8 x 1.5 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 8 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Stereo Radio Cassette Recorder TRK-8270W - Hitachi Ltd.; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 485 x 280 x 135 mm / 19.1 x 11 x 5.3 inch
- Notes
-
Tuning Range: FM 88 - 108 MHz, AM 530 - 1605 kHz, SW1 2.3 - 7.0 MHz, SW2 7.0 - 22.0 MHz.
Cassette player (C-30, 60, 90), 4.75 cm/s, 3-digit analog tape counter, Auto Stop
4 speakers: 2 x 5 cm 4 ohms, 2 x 16 cm 2.8 ohms.
Built-in microphone, battery/operations/level indicator.
Carrying Handle, Telescopic antenna, ferrite antenna.
DC 12V Jack.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Author
- Model page created by Matthew Xenakis. See "Data change" for further contributors.
