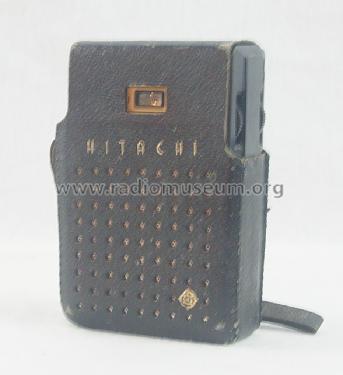

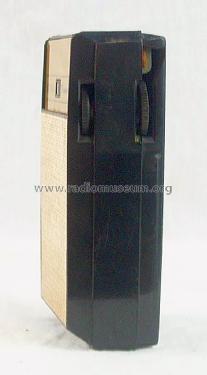

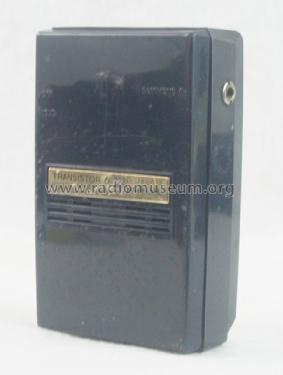

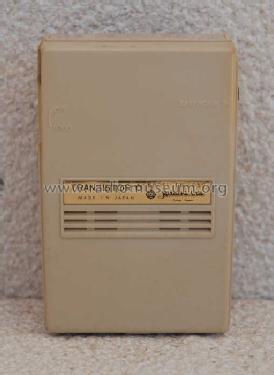

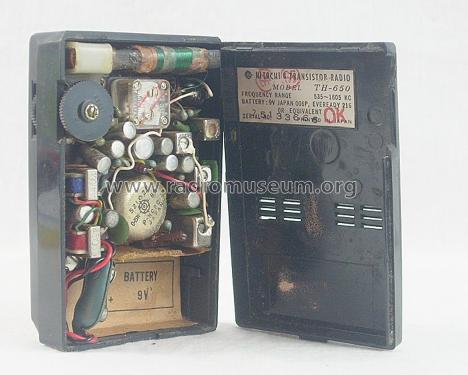

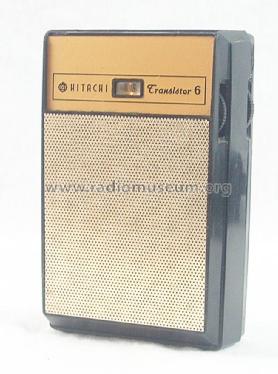

Transistor 6 TH-650
Hitachi Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Hitachi Ltd.; Tokyo
- Year
- 1963 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 90945
-
- alternative name: Hitachi Sales Corp. of America

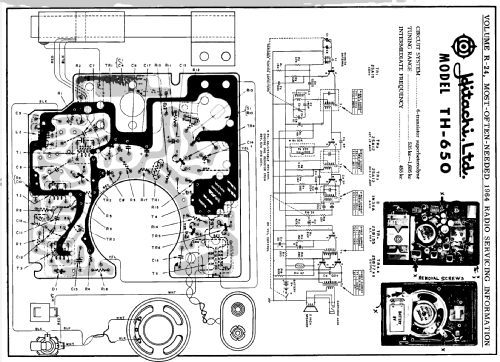

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Transistor 6 TH-650 - Hitachi Ltd.; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
- Vertical shirtpocket transistor.
- Net weight (2.2 lb = 1 kg)
- 0 lb 7 oz (0.438 lb) / 0.199 kg
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 24, 1964
- Literature/Schematics (1)
- Radio And Television Servicing books (R&TVS)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
