TH-667

• Country
• Japan

• Manufacturer / Brand
• Hitachi Ltd.; Tokyo

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 103603

• • alternative name: Hitachi Sales Corp. of America

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N219 2N218 2N218 2N215 2N217 2N217

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Power out
• 0.17 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

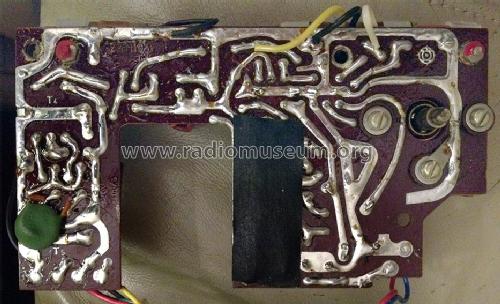

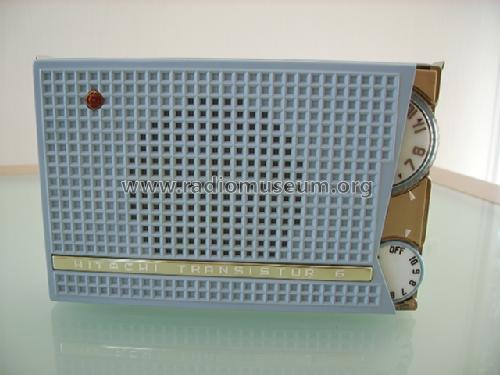

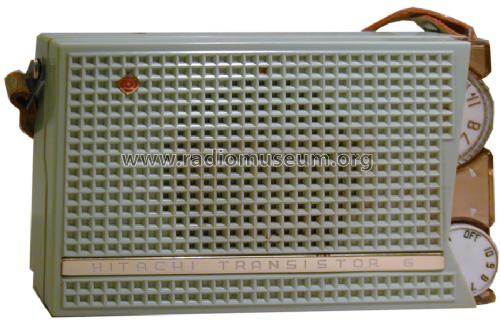

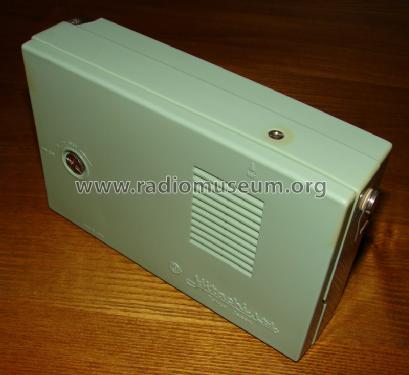

• Model: TH-667 - Hitachi Ltd.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 170 x 110 x 44 mm / 6.7 x 4.3 x 1.7 inch

• Notes
• Diode 1N34A. Battery operated transistorized portable AM receiver.

• Price in first year of sale
• 45.00 $

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 483 folder 8 date 5-60)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
