TRK-8270 Japan domestic
Hitachi Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Hitachi Ltd.; Tokyo
- Year
- 1980 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 298305
-
- alternative name: Hitachi Sales Corp. of America

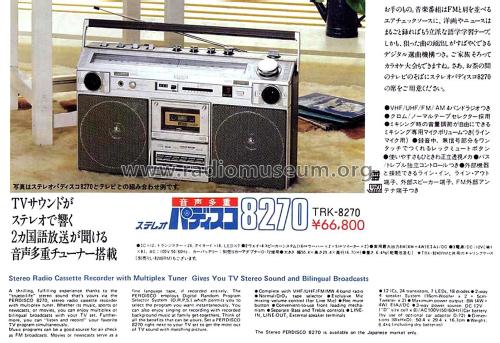

Japanese folder
- Number of Transistors
- 24
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / AC 50/60 Hz: 100 / DC 12 / 8 x 1.5 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 14 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TRK-8270 [Japan domestic] - Hitachi Ltd.; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 504 x 294 x 167 mm / 19.8 x 11.6 x 6.6 inch
- Notes
-
Tuning Range: VHF / UHF / FM /AM
Cassette player (C-30, 60, 90), 4.75 cm/s, 3-digit analog tape counter, Auto Stop
4 speakers: 2 x 5 cm 4 ohms, 2 x 16 cm 2.8 ohms.
Built-in microphone, battery/operations/level indicator.
Carrying Handle, Telescopic antenna, ferrite antenna.
DC 12V Jack.24 transistors, 18 diodes, 12 ICs, 7 LEDs.
Domestic Japanese model, most likely with OIRT FM.
- Net weight (2.2 lb = 1 kg)
- 6.4 kg / 14 lb 1.6 oz (14.097 lb)
- Price in first year of sale
- 66,800.00 JPY
- Mentioned in
- -- Original prospect or advert
