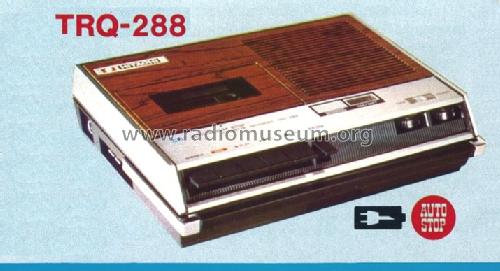

TRQ-288

Hitachi Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1973
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 141522
    • alternative name: Hitachi Sales Corp. of America

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type)
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
  • Power out
  • 1.3 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TRQ-288 - Hitachi Ltd.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 248 x 60 x 175 mm / 9.8 x 2.4 x 6.9 inch
  • Notes

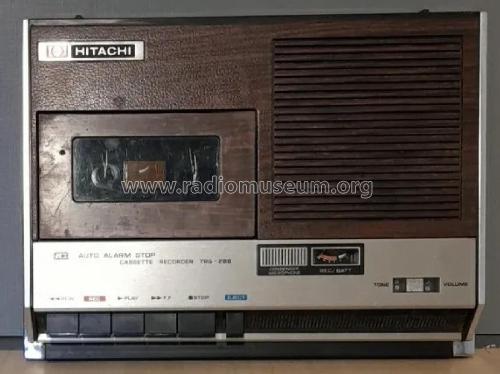

  • TRQ-288 cassette tape recorder. A guest wrote to us: I believe that this TRQ-288 (or TRQ-298, 258, 256 or 296) was used for a video game called Shenmue 2. The game was developed in the late 90s and released on Xbox 1 in 2002. The setting of the game is Hong Kong and Kowloon in China, 1987. Perhaps the Hitachi recorder was a personal note from the director, Yu Suzuki, since that Hitachi would be considered quite old by 1987.

    Flacher Mono-Kassetten-Recorder mit Auto-Alarm-Stop-System "Levelmatic".
    Bandzählwerk, eingebautes Kondensator-Mikrofon. Frequenzbereich 60-10000Hz. Tragegriff versenkbar.
    Zubehör: Mikrofon mit FB, Ohrhörer, Demokassette und Tragetasche.
    1 Transistor, 2 ICs und 2 Dioden.
  • Net weight (2.2 lb = 1 kg)
  • 2.2 kg / 4 lb 13.5 oz (4.846 lb)
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
