• Country
• Japan

• Manufacturer / Brand
• Hitachi Ltd.; Tokyo

• Year
• 1973

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 148256

• • alternative name: Hitachi Sales Corp. of America

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• 2SC458

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220; 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

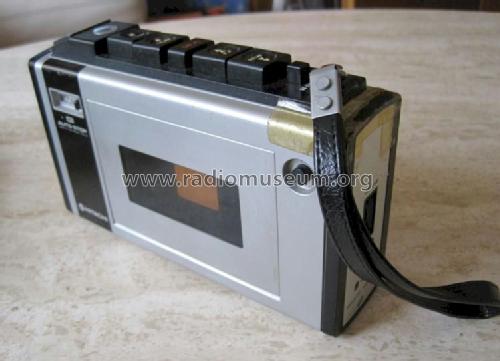

• Model: TRQ-30 - Hitachi Ltd.; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 182 x 104 x 48 mm / 7.2 x 4.1 x 1.9 inch

• Notes

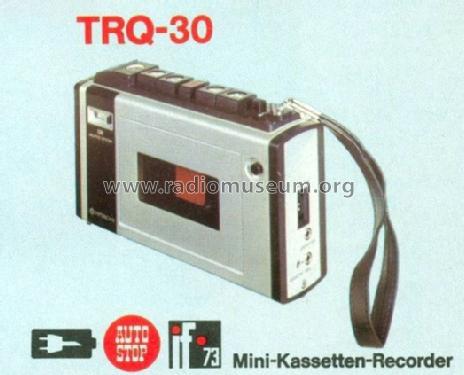

• Mini-Kassetten-Recorder mit Trageschlaufe.
  100 - 8.000 Hz, 3-stelliges Bandzählwerk.
  Zubehör: 1 Mikrofon mit FB, Ohrhörer, Kassette, Netzgerät (6V) und Tragetasche.
  1 Transistor, 2 IC's, 4 Dioden.

• Net weight (2.2 lb = 1 kg)
• 0.7 kg / 1 lb 8.7 oz (1.542 lb)

• Price in first year of sale
• 348.00 DM

• Source of data
• -- Original prospect or advert

• Mentioned in
• - - Manufacturers Literature (Preisliste November 1972)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
