• Country
• Japan

• Manufacturer / Brand
• Hitachi Ltd.; Tokyo

• Year
• 1965–1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152337

• • alternative name: Hitachi Sales Corp. of America

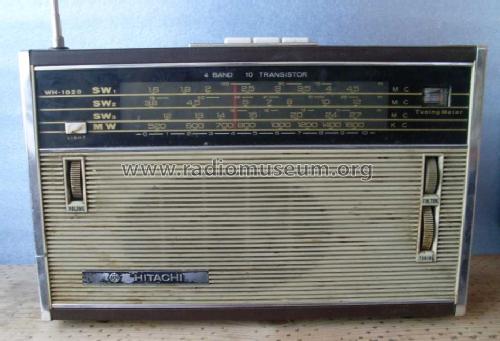

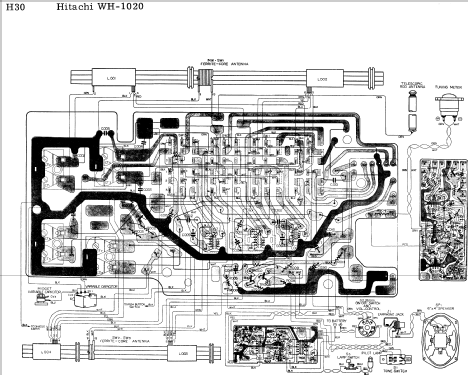

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SA350 2SA350 2SA12 2SA353 2SB75 2SB75 2SB77 2SB77 2SB156 2SB156 1N34A 1N34A

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 5 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

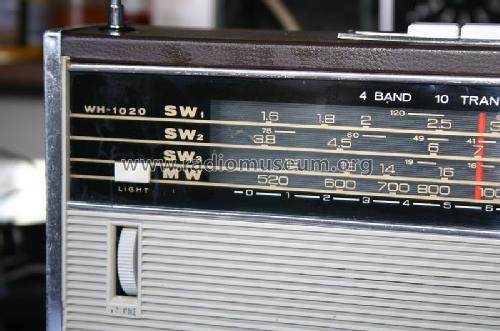

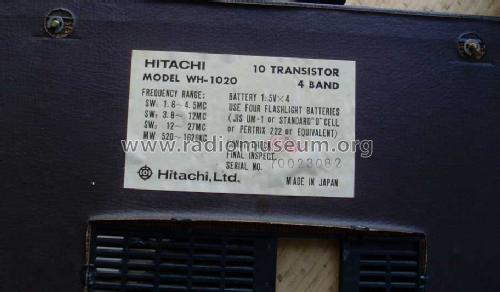

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: WH-1020 - Hitachi Ltd.; Tokyo

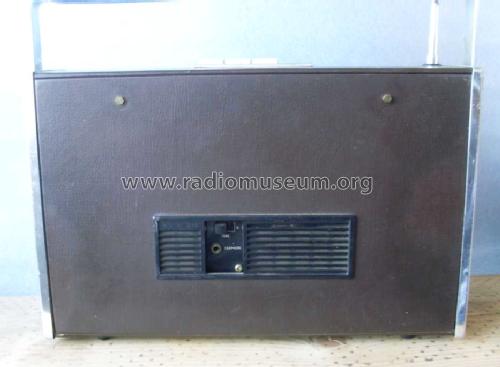

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 180 x 75 mm / 11 x 7.1 x 3 inch

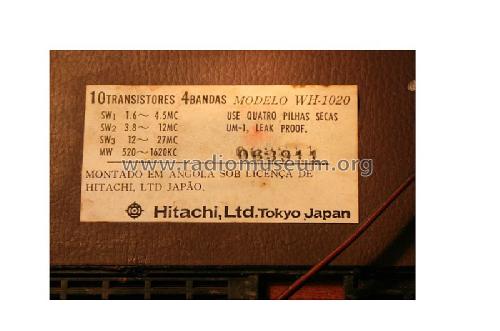

• Notes
• "Export model for the Angola market and manufactured in Angola".

• Source of data
• - - Data from my own collection

• Author
• Model page created by Júlio Branco. See "Data change" for further contributors.
