• Country
• Germany

• Manufacturer / Brand
• Hitec Audio, Musik Produktiv; Ibbenbüren

• Year
• 2000 ??

• Category
• Microphone or Pick-up element

• Radiomuseum.org ID
• 294248

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• 2N5551 2SK170 2N5401 2N5401

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit. / 9-52 DC Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Condenser Studiomicrophone Fat One - Hitec Audio, Musik Produktiv;

• Dimensions (WHD)
• 50 x 200 x 50 mm / 2 x 7.9 x 2 inch

• Notes

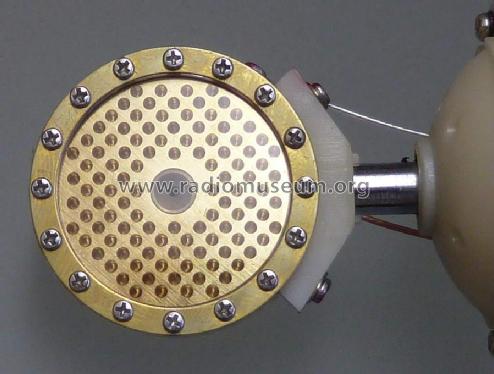

• Das Fat One ist ein Grossmembran-Kondensatormikrofon des Druckgradiententyps.

  Es arbeitet mit einer Phantomspeisung zwischen 9V und 52V.

  Es wird unter der Eigenmarke "Hitec Audio" des Online Musikgerätehändlers "Musik Produktiv" vertrieben.

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Price in first year of sale
• 100.00 Euro

• Author
• Model page created by Adalbert Gebhart. See "Data change" for further contributors.
