• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• His Master's Voice (N.Z.), Ltd., HMV; Wellington

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 308039

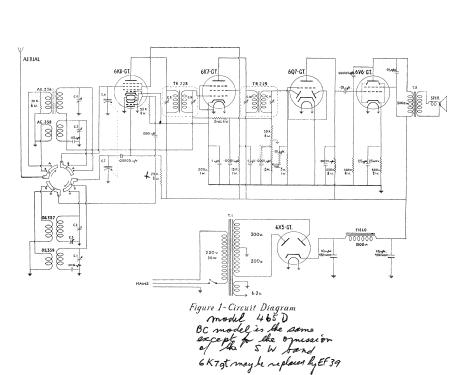

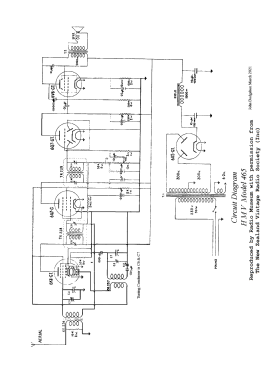

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6K8GT 6K7GT 6Q7GT 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Cadet 465 - His Master's Voice N.Z., Ltd.,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12 x 7.5 x 7.5 inch / 305 x 191 x 191 mm

• Notes

• 5 valve AC powered broadcast (MW) superhet mantel receiver.

  Tuning Frequency: MW 540-1750 kHz

  Second version to use the Cadet model name.

  Due to post wartime shortages some models may have substitute components including valves ECH35, EF39 or 6U7G, EBC33 or 6SQ7, EL33, 5Y3G.

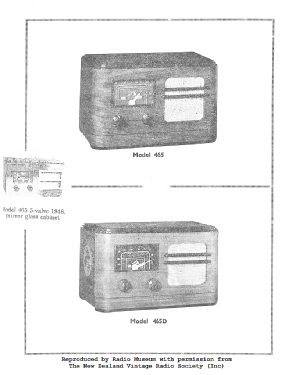

  See also Cadet 465 Mirror Cabinet and HMV 465D dual wave.



• Price in first year of sale
• 20.50 £

• Mentioned in

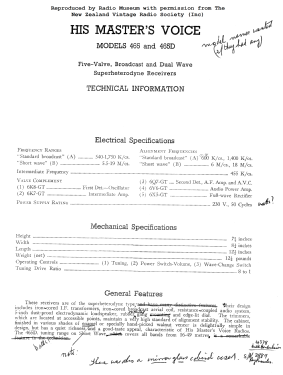

• -- Original prospect or advert (Page 109)

• Literature/Schematics (1)
• -- Original prospect or advert (New Zealand Herald 27 December 1945 Page 4)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
