• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• His Master's Voice (N.Z.), Ltd., HMV; Wellington

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 333507

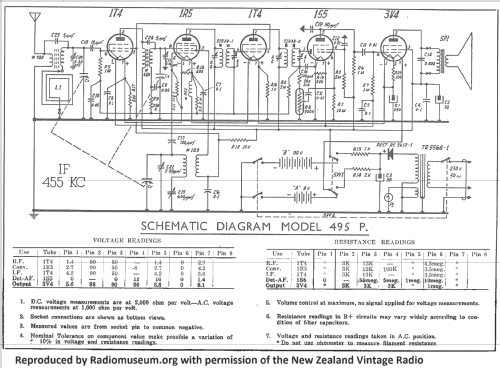

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1T4 1R5 1T4 1S5 3V4

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 230 / 9 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Cambridge 495P - His Master's Voice N.Z., Ltd.,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• 5 valve AC/Battery portable superhet with RF stage.

  See also Pacemaker 519AB.

• Price in first year of sale
• 33.50 NZ £

• Mentioned in
• -- Original prospect or advert (Ashburton 25 February 1950 Page 3)

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
