Canterbury 498AW

His Master's Voice (N.Z.), Ltd., HMV; Wellington

Data
Forum
Pictures
Collections

  • Year
  • 1949 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 333498

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Canterbury 498AW - His Master's Voice N.Z., Ltd.,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 21 x 16.5 x 14 inch / 533 x 419 x 356 mm
  • Notes

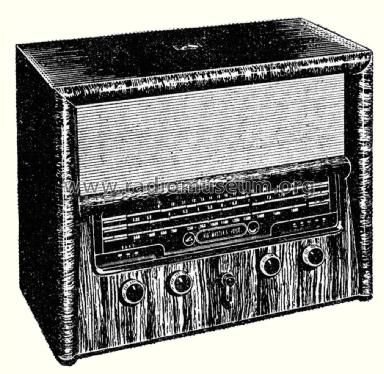

  • Canterbury 8 Valve All-Wave Radio

    We present for the listening public this stylish mantel 8-valve all-wave radio which is truly a leader in the “big model” radio range. Housed in a cabinet of figured walnut veneer that is designed in the true HMV fashion, the Canterbury model has a general appeal colour toning that will enhance any surroundings that it is placed in. A full vision curser dial makes station finding extremely easy to even the novice and the incorporated tonal range indicator aids the user to select any tone that may be required. A special feature of the Canterbury is the covering of the Amateur Bands which will prove of interest to listeners as the popularity of DXing is gaining daily in New Zealand.


    Frequency Range:

    Broadcast 535 – 1630 Kcs
    Medium Wave 3.2 – 8.2 Mcs
    Short Wave  7.5 – 22.5 Mcs



  • Literature/Schematics (1)
  • - - Manufacturers Literature (498 AW Service Data Sheet)
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
