• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• His Master's Voice (N.Z.), Ltd., HMV; Wellington

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 314207

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 7S7 7B7 7C6 7C5 7Y4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

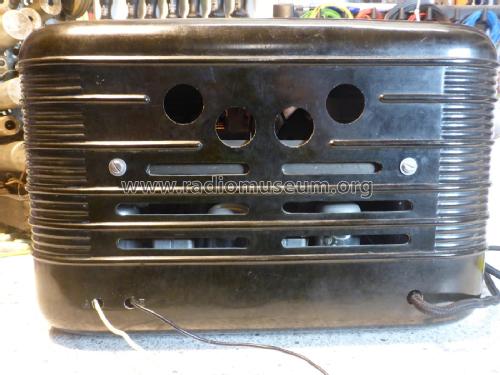

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Little Nipper II 545 B/C - His Master's Voice N.Z., Ltd.,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12 x 7.5 x 5.5 inch / 305 x 191 x 140 mm

• Notes

• Available in Walnut, Cream, Green or Burgundy.

  Similar Products:

  - Little Nipper 495 BC (1949)

  - Little Nipper MkII 525BC (1952)

  -Little Nipper MkIII 5701 (1957)

  - Bradford 545 RG (1954 w/ Turntable integrated)

  See Australian version Model A13B.

• Mentioned in
• More Golden Age of Radio (Page 110)

• Literature/Schematics (1)
• -- Original prospect or advert (Press 3 July 1953 Page 14)

• Author
• Model page created by Gunnar Schmid. See "Data change" for further contributors.
