• Country
• United States of America (USA)

• Manufacturer / Brand
• Hoffman Radio Corp.; Los Angeles, CA

• Year
• 1952 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 44372

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 7F8 6BE6 6BA6 6BA6 6AL5 6AT6 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 530 Ch= 137 - Hoffman Radio Corp.; Los

• Shape
• Console, Lowboy (legs < 50 %).

• External source of data
• Ernst Erb

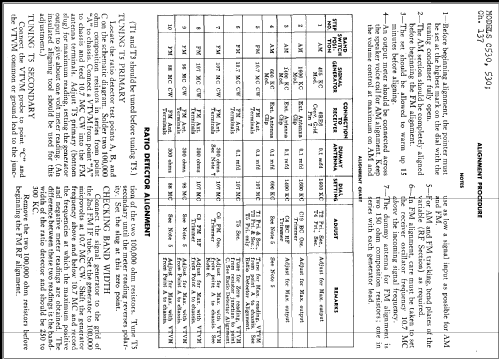

• Circuit diagram reference
• Rider's Perpetual, Volume 20 covering 1950

• Other Models

• Here you find 927 models, 213 with images and 894 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
