24P372U2 Ch= 413-24
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1955 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 333291

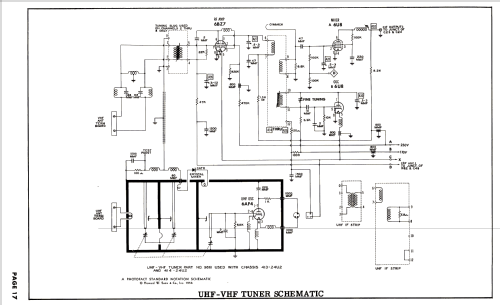

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6BQ7A 6J6 6CB6 6CB6 6CB6 6AS8 12BY7 6AN8 6AU6 6AL5 6AV6 6K6GT 6CS6 6SN7GTA 6W6GT 6AL5 6SN7GT 6CD6G 6AX4GT 1B3GT 5AU4 24CP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 24P372U2 Ch= 413-24 - Hoffman Radio Corp.; Los
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Hoffman model 24P372U2 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with chassis 413-24, VHF tuner 9839 and picture tube 24CP4A.
- Literature/Schematics (1)

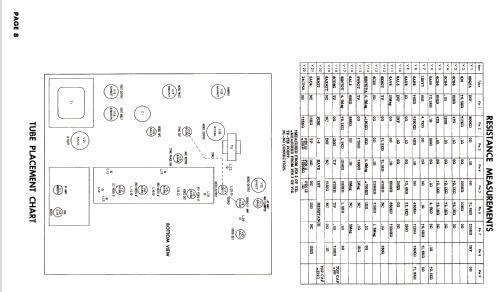

- Photofact Folder, Howard W. SAMS (Set 303 Folder 4 dated 1-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
