24W196 Ch= 413-24

• Country
• United States of America (USA)

• Manufacturer / Brand
• Hoffman Radio Corp.; Los Angeles, CA

• Year
• 1955 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 333333

• Picture
• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• 6BQ7A 6J6 6CB6 6CB6 6CB6 6AS8 12BY7 6AN8 6AU6 6AL5 6AV6 6K6GT 6CS6 6SN7GTA 6W6GT 6AL5 6SN7GT 6CD6G 6AX4GT 1B3GT 5AU4 24CP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 24W196 Ch= 413-24 - Hoffman Radio Corp.; Los

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Hoffman model 24W196 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.

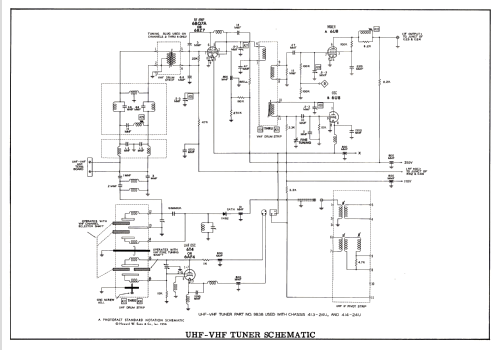

  Equipped with chassis 413-24, VHF tuner 9839 and picture tube 24CP4A.

• Literature/Schematics (1)

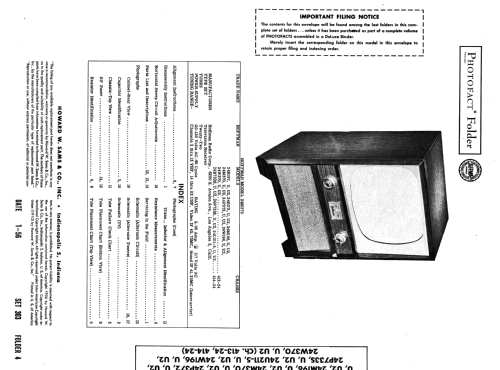

• Photofact Folder, Howard W. SAMS (Set 303 Folder 4 dated 1-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
