886B Ch= 183B
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 355696
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 23
- Valves / Tubes
- 6BK7 6J6 6CB6 6CB6 6CB6 6CB6 6AL5 6CB6 6AU6 6AU6 6AU6 6AL5 6SQ7 6K6GT 6AU6 6SN7GT 6BL7GT 6SN7GT 6BG6G 6W4GT 1X2A 5U4G 17HP4 or 17RP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 886B Ch= 183B - Hoffman Radio Corp.; Los
- Shape
- Console with any shape - in general
- Notes
-
Hoffman model 886B is a 17” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 183B, VHF tuner 9717 and picture tube 17HP4 or 17RP4.
- Literature/Schematics (1)

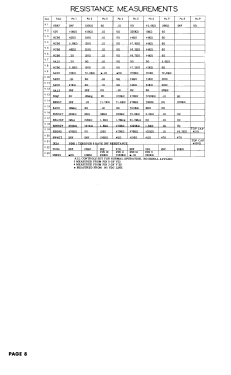

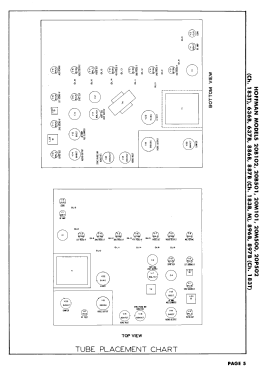

- Photofact Folder, Howard W. SAMS (Set 168, folder 8, dated 5-52)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
