951A Ch= 174

• Country
• United States of America (USA)

• Manufacturer / Brand
• Hoffman Radio Corp.; Los Angeles, CA

• Year
• 1950 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 341085

• Picture

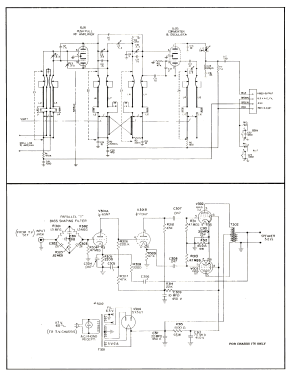

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• 6J6 6J6 6CB6 6CB6 6CB6 6CB6 6AU6 6BA6 or 6AU6 6BA6 or 6AU6 6AL5 6SQ7 or 6AV6 6K6GT 6AU6 6SN7GT 6BL7GT or 12BH7 6SN7GT 6BG6G 6W4GT 1X2A or 1X2 5U4G 6BE6 or 6BA7 6BA6 6AV6 16TP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 951A Ch= 174 - Hoffman Radio Corp.; Los

• Notes

• Hoffman model 951A is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis 174, a VHF tuner and picture tube 17BP4.







• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 117, Folder 1A dated 12-50)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 127 Folder 1A dated 51)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
