A300 Ch= 100 & 100S
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 44375
The cabinet was refinished.
The cabinet was refinished.
The cabinet was refinished.
The cabinet was refinished.
The cabinet was refinished.
ebay #250355374245
ebay #250355374245
copy from eBay seller: sheahan_or (USA).
copy mfrom eBay seller: sheahan_or (USA).
copy from eBay seller: sheahan_or (USA).
copy from eBay seller: sheahan_or (USA).
ebay #250355374245
ebay #250355374245
original knobs - detail
RECONSTRUCTED LABEL

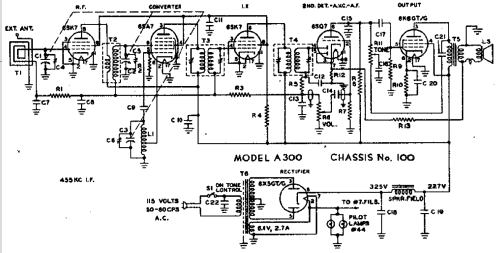

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Power out
- 1.25 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: A300 Ch= 100 & 100S - Hoffman Radio Corp.; Los
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 14.5 x 8.25 x 8 inch / 368 x 210 x 203 mm
- Notes
- BC (535-1640 kHz) band. Built-in loop antenna. Chassis 100 has 4x6 inch oval electrodynamic speaker, chassis 100S has 5 inch PM speaker.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 3 folder 463-3 date 8-46)
- Other Models
-
Here you find 927 models, 213 with images and 894 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Hoffman Radio Corp.; Los Angeles, CA
Collections
The model A300 is part of the collections of the following members.
Forum contributions about this model: Hoffman Radio Corp.;: A300 Ch= 100 & 100S
Threads: 1 | Posts: 1

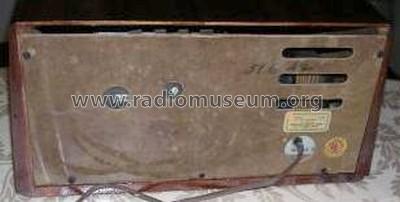

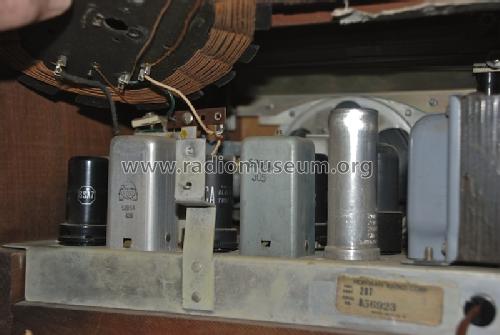

Earlier when I looked, I thought I saw a model number of 207 on my version of this radio (4" round speaker); however, looking more closely, I see what is says is "RMA Code 207" on a sticker that on the chassis. The sticker also has a Serial Number of B56923. There is no other indication of model number on the radio, unlike the one pictured that has a model number on a sticker directly above the hole in the back cover through which the power cord emerges.
Brad Averill, 15.Oct.11
