A501 Ch= 108S&108ST
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 44383
Beitman
Sams photofact.

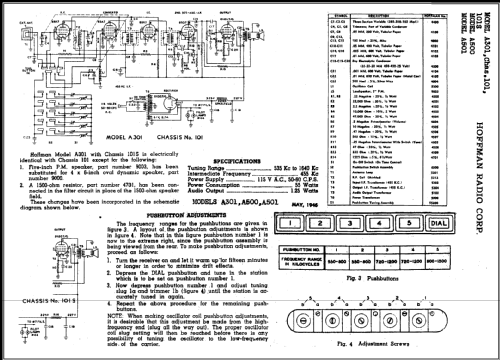

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 12 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: A501 Ch= 108S&108ST - Hoffman Radio Corp.; Los
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 34 x 34 x 18 inch / 864 x 864 x 457 mm
- Notes
- BC (540-1600 kHz), SW1 (5.6-10.4 MHz) and SW2 (9.4-19.4 MHz) bands. Built-in loop antenna for BC band. Five push-button station selectors for BC band. Push-pull audio amplifier. Chassis 108ST with minor electrical changes - see schematic. Rubbed finish in mahogany, walnut or blonde wood.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 3 folder 463-35 date 8-46)
- Literature/Schematics (2)
- Radio Retailing (Radio & Television R.) (May 1946 page 46.)
- Other Models
-
Here you find 927 models, 213 with images and 894 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Hoffman Radio Corp.; Los Angeles, CA
