B1007U Ch= 315U
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 312474

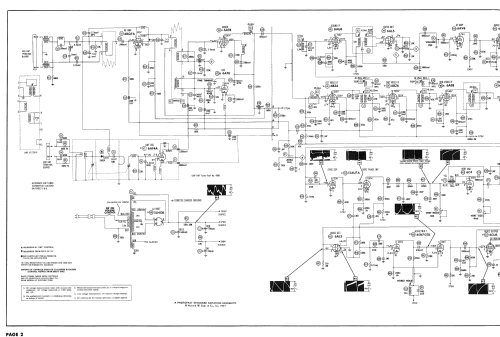

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6AF4A or 6AF4 6BQ7A 6AT8 6BZ6 or 6CB6 6BZ6 or 6CB6 6AS8 6CB6 6AU6 6AL5 6AV6 6K6GT 12AU7A or 12AU7 6C4 6AQ5 6AL5 6SN7GTB or 6SN7GT 6CU6 or 6BQ6GT 6AX4GT 1X2B 5U4GB or 5U4GA 17HP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: B1007U Ch= 315U - Hoffman Radio Corp.; Los
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Hoffman model B1007U is a 17" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 315U, VHF tuner 33759, UHF tuner 33758 and picture tube 17HP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 366 Folder 4 dated 8-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
