B1061 Ch= 415
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 137490

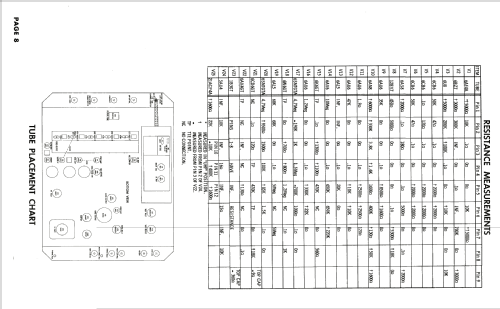

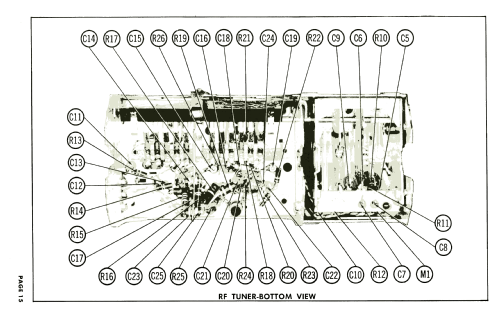

Picture from service manual

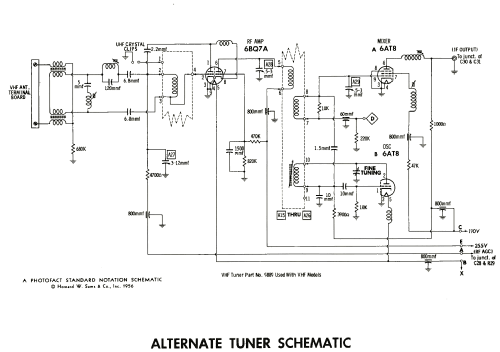

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Valves / Tubes
- 6BZ7 6U8 6CB6 6CB6 6CB6 6AS8 12BY7 6AU6 6AN8 6AU6 6AU6 6AL5 6AV6 6K6GT 6AU6 6SN7GTA 6W6GT 6AL5 6SN7GTA 6CD6GT 6AX4GT 1B3GT 5AU4 21ACP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: B1061 Ch= 415 - Hoffman Radio Corp.; Los
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The Hoffman model B1061 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis 415 and picture tube 21ACP4A.
- Literature/Schematics (1)

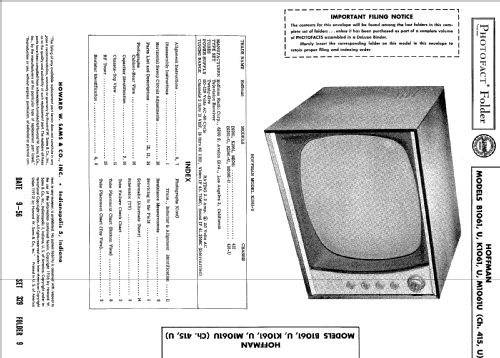

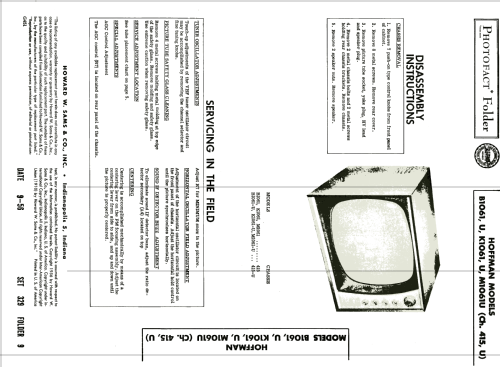

- Photofact Folder, Howard W. SAMS (Date 9-56, Set 329, Folder 9)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
