• Country
• United States of America (USA)

• Manufacturer / Brand
• Hoffman Radio Corp.; Los Angeles, CA

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 316607

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• 6BN4 6CG8 6BZ6 6BZ6 6U8 12BY7 6AU6 6DT6 6U6GT 12AU7 6CG7 6W6GT 6AL5 6CG7 6CU6GT 6AX4GT 1B3GT 5U4GB 21ALP4B

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: B1201 Ch= 330 - Hoffman Radio Corp.; Los

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Hoffman model B1201 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 330, VHF- tuner 710001 and picture tube 21ALP4B.



• Literature/Schematics (1)

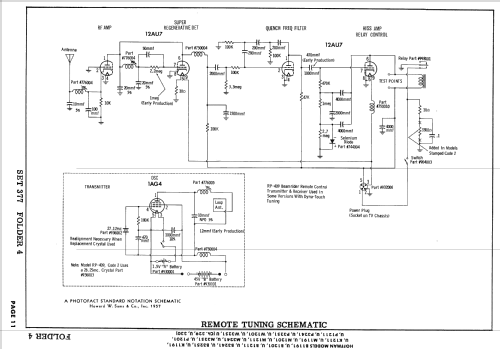

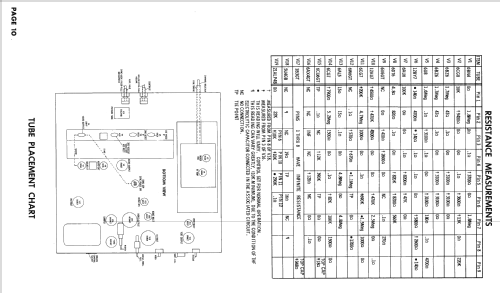

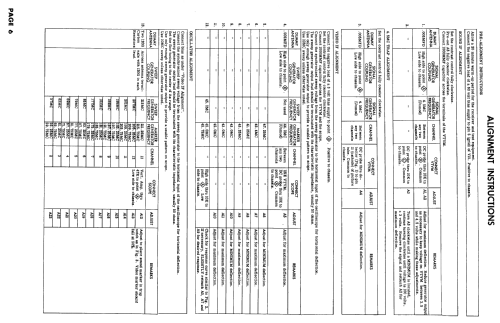

• Photofact Folder, Howard W. SAMS (Set 377 Folder 4 dated 11-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
