B1227 Ch= 327

• Country
• United States of America (USA)

• Manufacturer / Brand
• Hoffman Radio Corp.; Los Angeles, CA

• Year
• 1958 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 197212

• Picture
• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 2BN4 5CG8 3CB6 5U8 6AW8A 5U8 3DT6 5AQ5 5CZ5 6CG7 12DQ6A 12AX4GTA 1B3GT 17BZP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: B1227 Ch= 327 - Hoffman Radio Corp.; Los

• Shape
• Tablemodel, with any shape - general.

• Notes

• Hoffman model B1227 is a 17" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 327, VHF tuner 710008 and picture tube 17BZP4.



• Literature/Schematics (1)

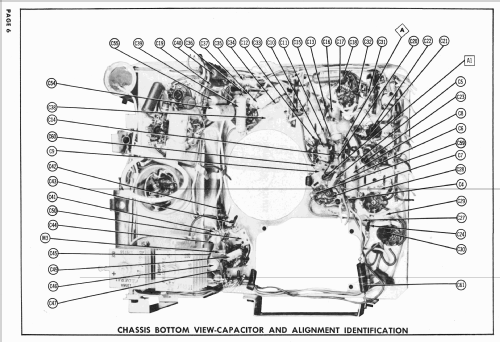

• Photofact Folder, Howard W. SAMS (Date 5-58, Set 398, Folder 2)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
