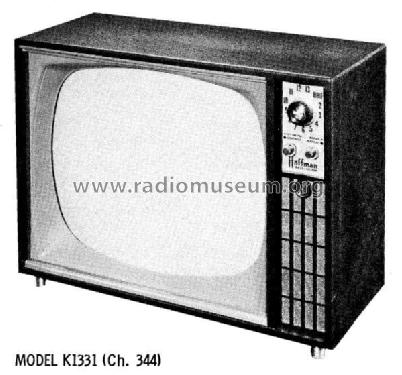

B1327, B1331, K1327, K1331 Ch= 344
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 155967
Sams Photofact Folders
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: B1327, B1331, K1327, K1331 Ch= 344 - Hoffman Radio Corp.; Los
- Shape
- Tablemodel, with any shape - general.
- Notes
- 21" b/w Television Receiver, Picture tube: 21CEP4.
Tuning Range: TV - Channels VHF 2 thru 13.
- Literature/Schematics (1)

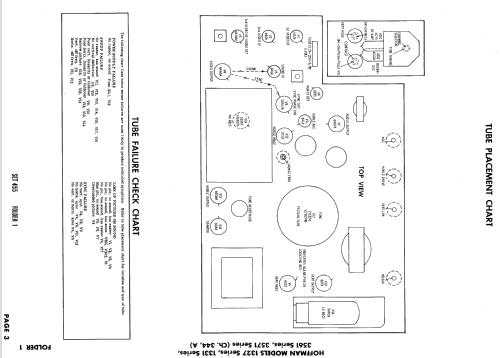

- Photofact Folder, Howard W. SAMS (Date 9-59, Set 455, Folder 1)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
