B3021 Ch= 318
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 308962
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6BQ7A 6AT8 6CB6 6CB6 6U8 12BY7 6AU6 6AL5 6AV6 6K6GT 12AU7 6SN7GT 6W6GT 6AL5 6SN7GT 6CU6GT 6AX4GT 1B3GT 5U4GB 24DP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: B3021 Ch= 318 - Hoffman Radio Corp.; Los
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Hoffman model B3021 is a 24" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 318, VHF tuner 9889 and picture tube 24DP4A.
- Literature/Schematics (1)

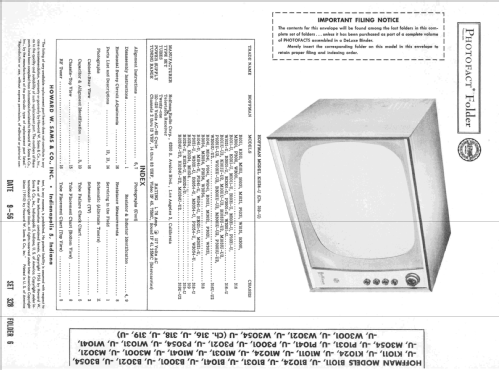

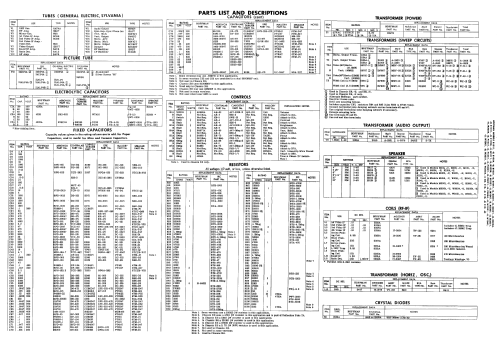

- Photofact Folder, Howard W. SAMS (Set 328 Folder 6 dated 9-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
