B3261 331
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 317662
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6BN4 6CG8 6BZ6 6BZ6 6AS8 6AW8A 6AU6 6T8 6V6GT 12AU7 6CG7 6W6GT 6AL5 6CG7 6DQ6GT 6AX4GT 1B3GT 5U4GB 24DP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: B3261 331 - Hoffman Radio Corp.; Los
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Hoffman model 3261 is a 24" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 331, VHF tuner 710001 and picture tube 24DP4D.
- Literature/Schematics (1)

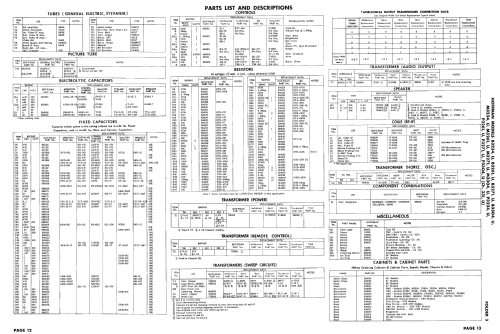

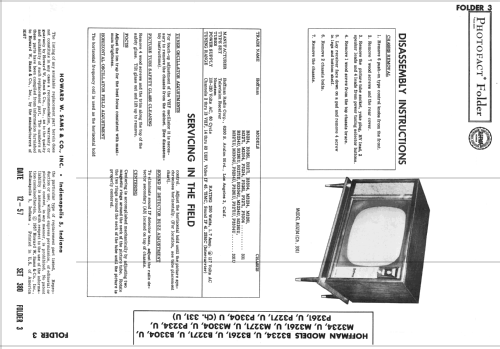

- Photofact Folder, Howard W. SAMS (Set 380 Folder 3 dated 12-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
