B3261U Ch= 331U

• Country
• United States of America (USA)

• Manufacturer / Brand
• Hoffman Radio Corp.; Los Angeles, CA

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 317709

• Picture

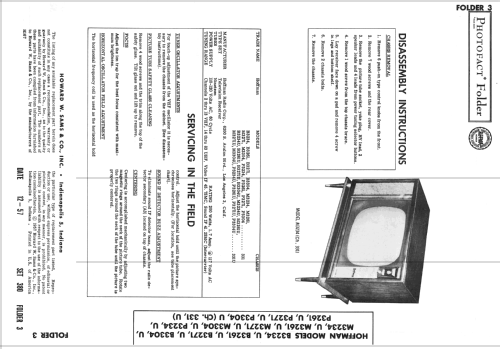

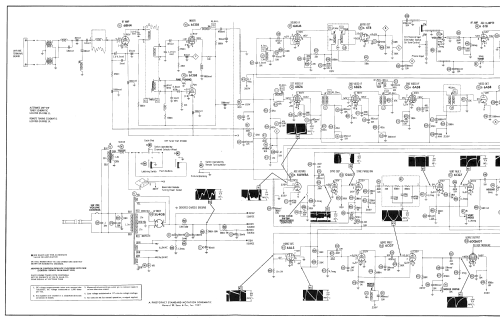

• Schematics

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• 6AF4A 6BN4 6CG8 6BZ6 6BZ6 6AS8 6AW8A 6AU6 6T8 6V6GT 12AU7 6CG7 6W6GT 6AL5 6CG7 6DQ6GT 6AX4GT 1B3GT 5U4GB 24DP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: B3261U Ch= 331U - Hoffman Radio Corp.; Los

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Hoffman model B3261U is a 24" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 331U, VHF-UHF tuner 712002 and picture tube 24DP4A.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 380 Folder 3 dated 12-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
