• Country
• United States of America (USA)

• Manufacturer / Brand
• Hoffman Radio Corp.; Los Angeles, CA

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 309008

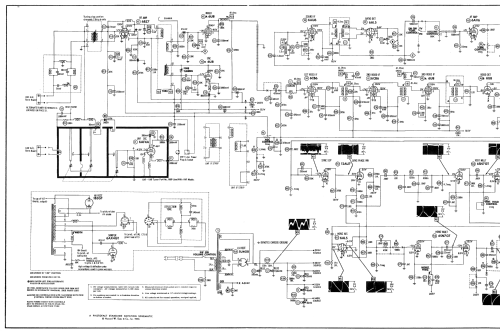

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6AF4A 6BZ7 6U8 6CB6 6CB6 6U8 12BY7 6AU6 6AL5 6AV6 6K6GT 12AU7 6SN7GT 6W6GT 6AL5 6SN7GT 6CU6GT 6AX4GT 1B3GT 5U4GB 24DP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: K1024U-U2 Ch= 319U-U2 - Hoffman Radio Corp.; Los

• Shape
• Tablemodel, with any shape - general.

• Notes

• Hoffman model K1024U-U2 is a 24" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 319U-U2, VHF-UHF tuner 9858 and picture tube 24DP4A.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 328 Folder 6 dated 9-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 927 models, 213 with images and 894 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
