M1231 Ch= 332
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 323383

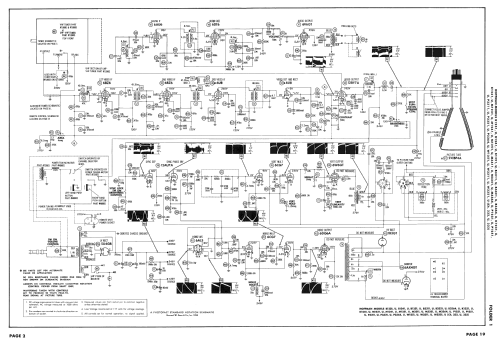

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6BN4 6CG8 6BZ6 6BZ6 6U8 12BY7 6AU6 6DT6 6V6GT 12AU7A 6CG7 6W6GT 6AL5 6CG7 6DQ6A 6AX4GT 1B3GT 5U4GB 21CBP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: M1231 Ch= 332 - Hoffman Radio Corp.; Los
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Hoffman model M1231 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 332, VHF tuner 710003 and picture tube 21CBP4A.
- Literature/Schematics (1)

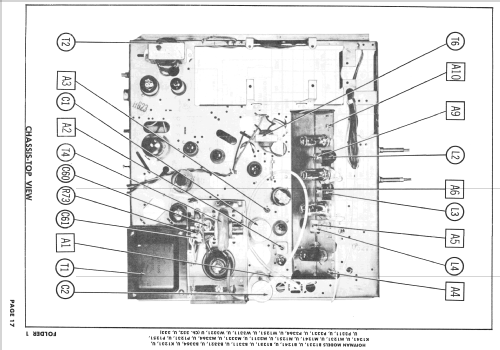

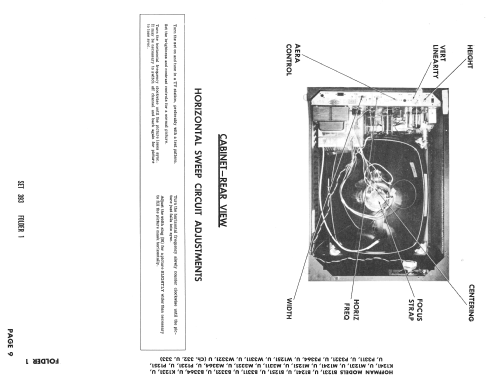

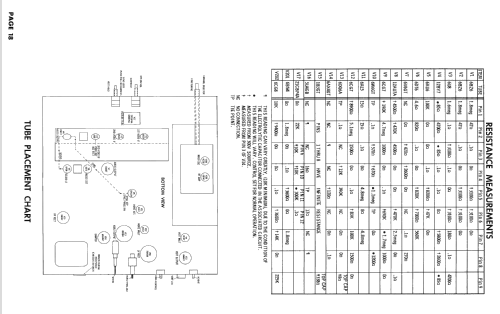

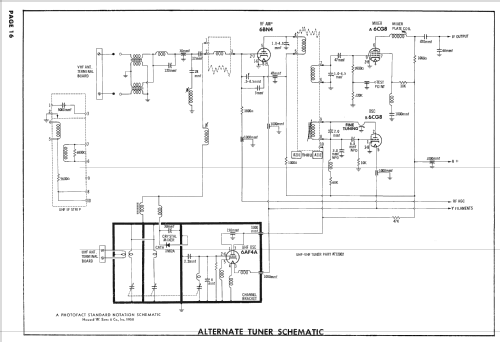

- Photofact Folder, Howard W. SAMS (Set 393 Folder1 dated 3-58)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
