M3011-U Ch= 416-U
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 281047

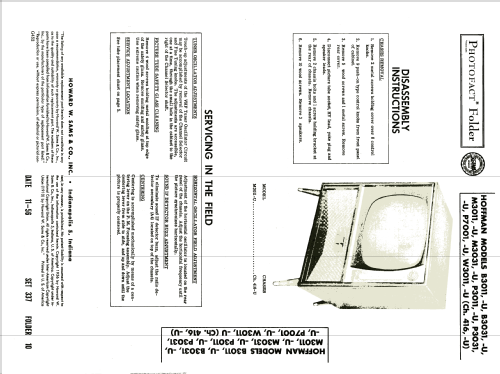

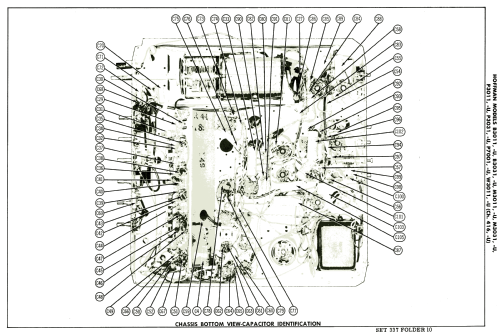

Picture frm service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 26
- Valves / Tubes
- 6AF4A 6BZ7 6U8 6CB6 6CB6 6CB6 6AS8 12BY7 6AU6 6AN8 6AU6 6AU6 6AL5 12AX7 6V6GT 6V6GT 6AU6 6SN7GTA 6W6GT 6AL5 6SN7GTA 6CD6G 6AX4GT 1B3GT 5AU4 21ACP4A or 21AMP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: M3011-U Ch= 416-U - Hoffman Radio Corp.; Los
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The HOFFMAN model M3011-U is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with VHF-tuner 9861, UHF-tuner 9858 or UHF-VHF-tuner 9881, chassis 416-U and picture tube 21ACP4A or 21AMP4A.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 337 Folder 10 dated 11-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
