M3374 Ch= 334
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 194740

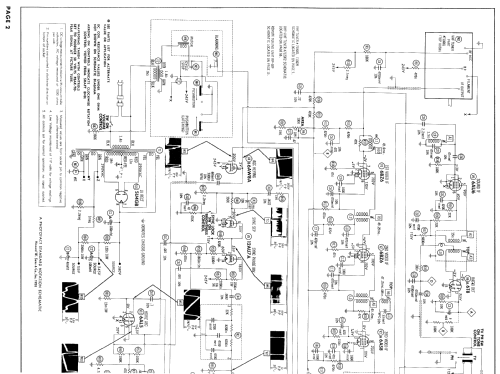

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6CG8 6BZ6 6BZ6 6AS8 6AW8A 6AU6 6T8 6V6GT 12AU7A 6CG7 6W6GT 6AL5 6CH7 6DQ6A 6AX4GT 1B3GT 5U4GA 21CBP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: M3374 Ch= 334 - Hoffman Radio Corp.; Los
- Shape
- Tablemodel, with any shape - general.
- Notes
-

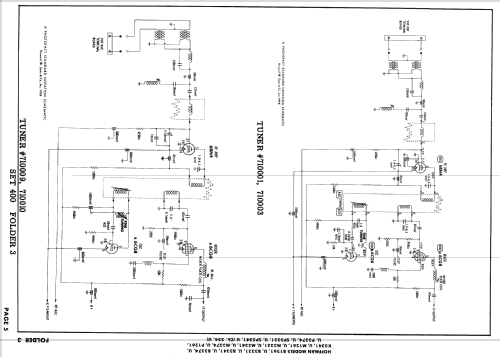

Hoffman model M3374 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 334, VHF tuner 71001 and picture tube 21CBP4A.
- Literature/Schematics (1)

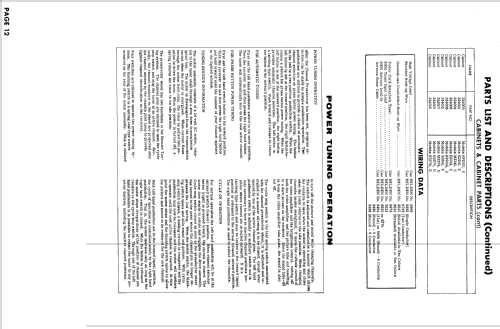

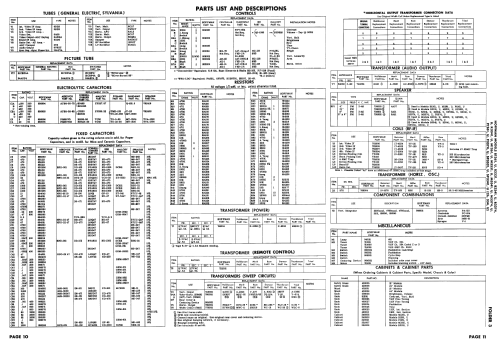

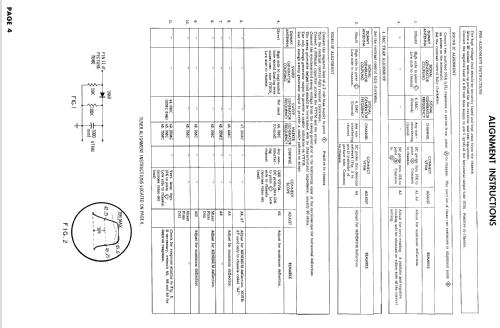

- Photofact Folder, Howard W. SAMS (Date 5-58, Set 400, Folder 3)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
