M4061U Ch= 706U
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 319885
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 31
- Valves / Tubes
- 6AF4A 6BQ7A 6AT8 6DE6 6DE6 6CB6 6AW8 12BY7A 6U8 6AU6 6AU6 6T8 6AQ5 6CG7 6AQ5 6CG7 6CB5 6AU4GT 1V2 3A3 6BK4A 6AW8 6AW8 6CB6 12BH7A 6BY6 6BY6 12BH7A 5U4GB 5U4GB 21AXP22A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: M4061U Ch= 706U - Hoffman Radio Corp.; Los
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Hoffman model M4061U is a 21" color TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis 706U, VHF-UHF tuner 712003 and picture tube 21AXP22A.
- Literature/Schematics (1)

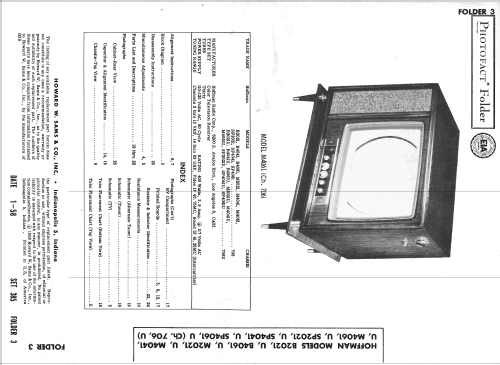

- Photofact Folder, Howard W. SAMS (Set 385 Folder 3 dated 1-58)
