• Country
• United States of America (USA)

• Manufacturer / Brand
• Hoffman Radio Corp.; Los Angeles, CA

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 159342

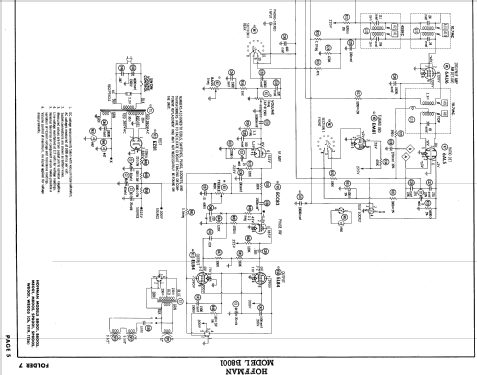

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6BK7B 6AB4 12AT7 6BE6 EM81 6BA6 6AU6 6AL5 ECC83 EL84 EL84 EZ81

• Main principle
• Superhet, double/triple conversion; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (MW), Police, sometimes also early TV (75-200m).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: M8001 Ch= 1119 - Hoffman Radio Corp.; Los

• Shape
• Console with any shape - in general

• Notes
• The Hoffman Radio Corp. Model M8001 is an AC operated 12 Tube FM-AM Receiver with 4 Speed Automatic Record Changer.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 6-59, Set 447, Folder 7)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
