M802 Ch= 1116 + 1108
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 180053

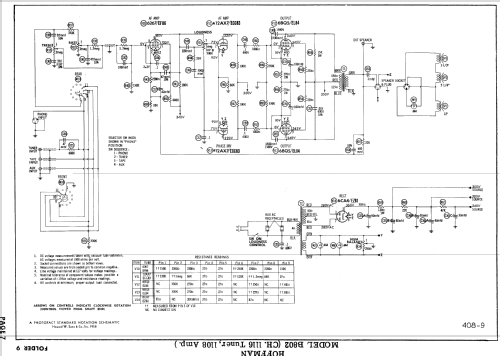

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: M802 Ch= 1116 + 1108 - Hoffman Radio Corp.; Los
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- The Hoffman Model M802 is an AC operated 9 tube FM-AM receiver (Chassis 1116) and 5 tube audio amplifier (Chassis 1108), with 4 speed automatic record changer.
- Literature/Schematics (1)

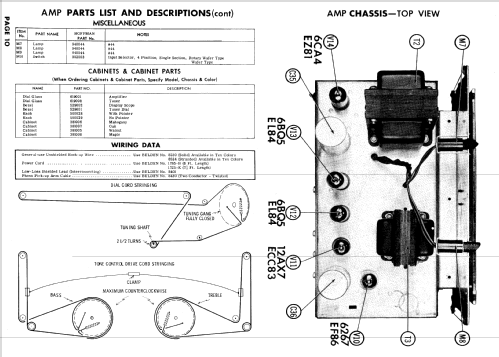

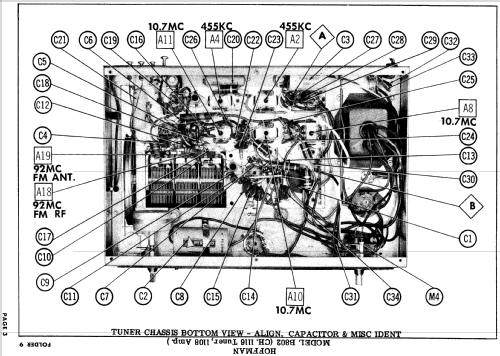

- Photofact Folder, Howard W. SAMS (Date 8-58, Set 408, Folder 9)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
