P1151 Ch= 323
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 313823
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20
- Valves / Tubes
- 6BN4 6CG8 6AT8 6BZ6 6BZ6 6U8 12BY7 6AU6 6DT6 6V6GT 12AU7 6CG7 6W6GT 6AL5 6CG7 6BQ6GTB or 6CU6 6AX4GT 1B3GT 5U4GB 21ALP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: P1151 Ch= 323 - Hoffman Radio Corp.; Los
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Hoffman model P1151 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 323, VHF tuner 9930 and picture tube 21ALP4A.
- Literature/Schematics (1)

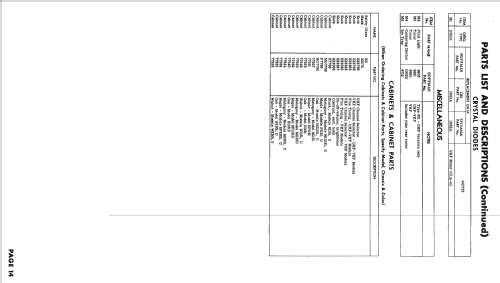

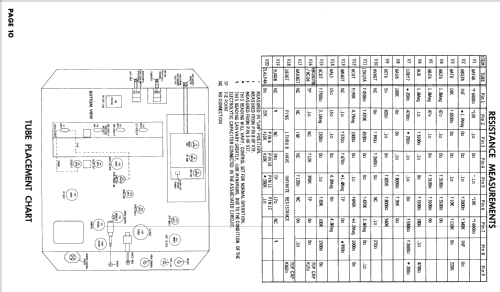

- Photofact Folder, Howard W. SAMS (Set 370 Folder 6 dated 9-57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
