• Country
• United States of America (USA)

• Manufacturer / Brand
• Hoffman Radio Corp.; Los Angeles, CA

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 299314

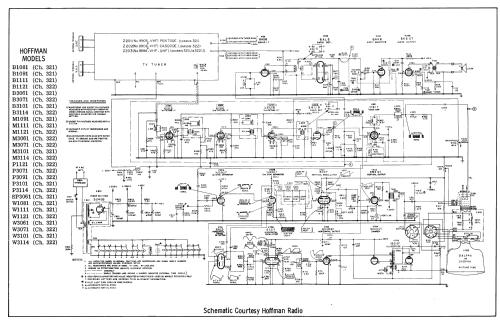

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6AU6 6AL5 6AV6 6K6GT 6CB6 6CB6 6U8 12BY7 12AU7 6CG7 6W6GT 6AL5 6CG7 6CU6GT 6AX4GT 1B3GT 5U4GB 21ALP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: W1081 Ch= 321 - Hoffman Radio Corp.; Los

• Notes

• Hoffman model W1081 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 321, VHF tuner No.9905 and picture tube 21AUP4A.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 318 Folder 15-S dated 5-56)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
