W1291 Ch= 336
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 187546
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 17BZP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: W1291 Ch= 336 - Hoffman Radio Corp.; Los
- Notes
- 17" b/w TV with US standard VHF Tuner Channels 2 thru 13. Some Models with Picture Tube 21CEP4.
- Literature/Schematics (1)

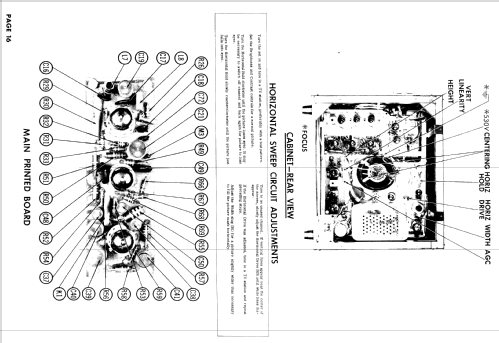

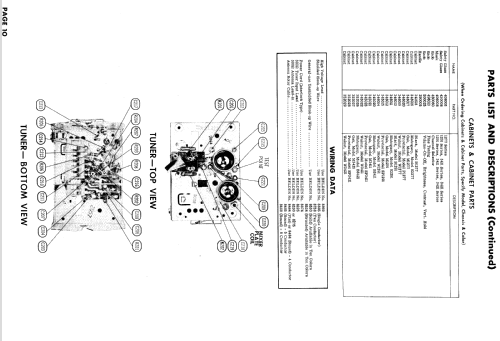

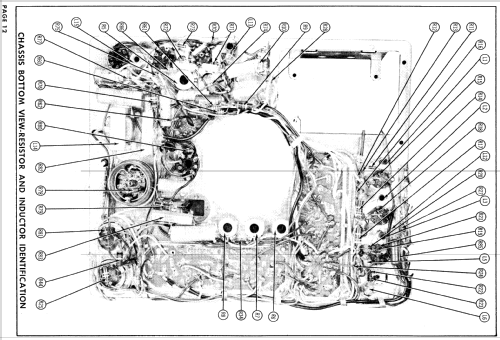

- Photofact Folder, Howard W. SAMS (Date 5-59, Set 442, Folder 1)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
