W3521 Ch= 341
Hoffman Radio Corp.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hoffman Radio Corp.; Los Angeles, CA
- Year
- 1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 191082
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 21CBP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: W3521 Ch= 341 - Hoffman Radio Corp.; Los
- Notes
- 21" b/w TV with US standard VHF Tuner Channels 2 thru 13.

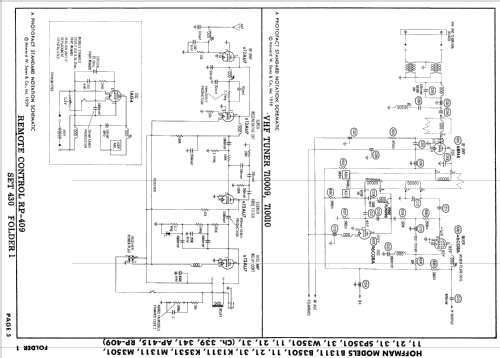

Some Models with Remote Control RP-409.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 2-59, Set 430, Folder 1)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
