• Country
• Germany

• Manufacturer / Brand
• Hohner, Matthias, AG; Trossingen

• Year
• 1973

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 130121

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECC82 ECC83 ECC83 ECC83 ECC83 ECC83 ECC83 EL84 EL84 EZ81

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 25.4 cm = 10 inch

• Power out
• 20 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

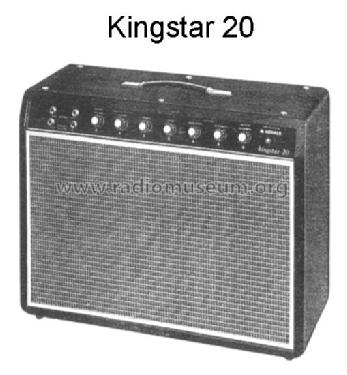

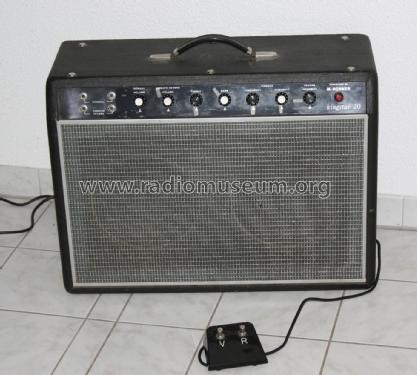

• Model: Kingstar 20 - Hohner, Matthias, AG;

• Dimensions (WHD)
• 520 x 680 x 250 mm / 20.5 x 26.8 x 9.8 inch

• Notes
• Musikleistung: 20 Watt
  Sinusleistung: 17 Watt
  Übertragungsbereich: 40 Hz .... 18 kHz
  Klirrfaktor: < 3% bei Aussteuerung mit Nennleistung bei 1 kHz
  2 Vorverstärker, Summenverstärker, Hallverstärker, Vibratogenerator, Gegentakt-B-Endstufe.
  Hersteller Electronic Music für Hohner.

• Net weight (2.2 lb = 1 kg)
• 24 kg / 52 lb 13.8 oz (52.863 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Willi Ribbe. See "Data change" for further contributors.
