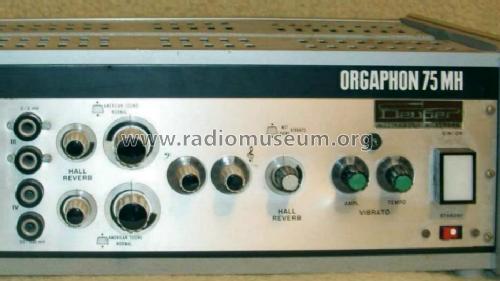

Orgaphon 75MH

Hohner, Matthias, AG; Trossingen

Data
Forum
Pictures
Collections

  • Year
  • 1966 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 132980

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220; 240 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 80 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Orgaphon 75MH - Hohner, Matthias, AG;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 550 x 160 x 250 mm / 21.7 x 6.3 x 9.8 inch
  • Notes
  • Dioden 9x BY 250.
    5 Eingänge, davon 4 mischbar
    E1: 2x 15 mV
    E2: 2x 25 mV und 150 mV
    E3, E4: 1x 2 mV oder 25 mV
    E5: Tonband
    Lautsprecher: 1,5 oder 6Ohm umschaltbar, 60W Dauer, 80W Musikleistung
  • Net weight (2.2 lb = 1 kg)
  • 15.9 kg / 35 lb 0.4 oz (35.022 lb)
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by Klaus Ortwein. See "Data change" for further contributors.
