14/21/28 MHz converter

Homebrew - ORIGINAL; GB

  • Year
  • 1965
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 304439

 Technical Specifications

  • Number of Transistors
  • 5
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Powered by external power supply or a main unit. / 12 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 14/21/28 MHz converter - Homebrew - ORIGINAL; GB
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 94 x 65 x 125 mm / 3.7 x 2.6 x 4.9 inch
  • Notes
  • JFET converter to improve the performance of a communications receiver on three HF amateur bands. Home built in the UK by GM3NZI in 1965.

    6 ranges: 14 - 14.5 MHz, 21 - 21.5 MHz, 28 - 28.5 MHz, 28.5 - 29 MHz, 29 - 29.5 MHz, 29.5 - 30 MHz.
    Output for the communications receiver as tuneable IF: 2 - 2.5 MHz.

    Xtals 16.5 MHz, 23.5 MHz, 26 MHz, 26.5 MHz, 27 MHz, 27.5 MHz.
    (High side injection on 15 and 20m, low side injection on 10m
    13 dust core tuned inductors plus IF trap.

    2N3819 RF amplifier.
    2N3819 RF amplifier.
    2N3819 Mixer.
    2N3819 Oscillator.
    2S104 IF amplifier.

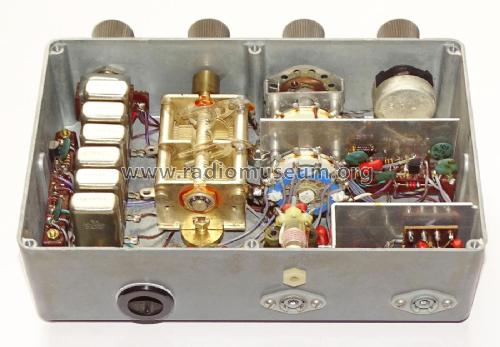

    Built in an Eddystone diecast box.

  • Net weight (2.2 lb = 1 kg)
  • 0.649 kg / 1 lb 6.9 oz (1.43 lb)
  • Author
  • Model page created by Bruce Taylor. See "Data change" for further contributors.
