• Country
• United States of America (USA)

• Manufacturer / Brand
• Homebrew - ORIGINAL, USA

• Year
• 2020

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 322161

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A8G 6K7G 6Q7G 38 48 48

• Number of Transistors
• 1

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands

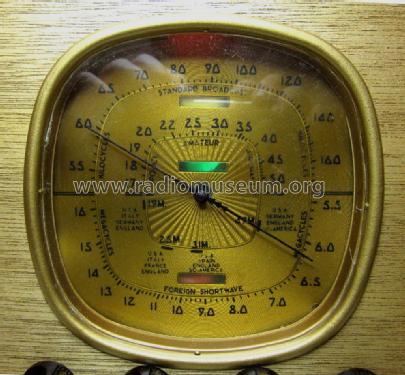

• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

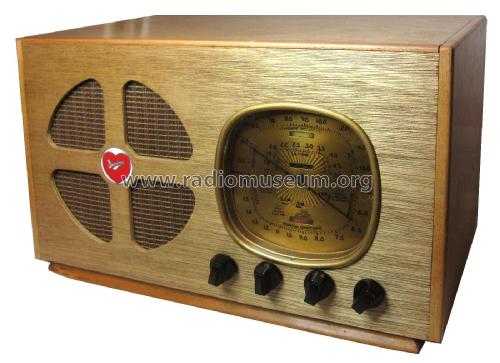

• Model: Universal Battery 6132 - Homebrew - ORIGINAL, USA

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 17 x 10.25 x 9 inch / 432 x 260 x 229 mm

• Notes

• Uses the chassis from a Universal Battery model 6132 with the following modifications:

  1.  Converted from 32VDC power to 120VAC power

  2.  Speaker size increased from 6.5 inch to 8 inch

  3.  Loop antenna added for Standard Broadcast band

  4.  Custom cabinet

  See Universal 6132 Low Profile for original model.

• Net weight (2.2 lb = 1 kg)
• 17.8 lb (17 lb 12.8 oz) / 8.081 kg

• Author
• Model page created by Jay Kinnard. See "Data change" for further contributors.
