- Country
- United States of America (USA)
- Manufacturer / Brand
- Honeytone (Honey Tone); San Francisco, CA
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 108137
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / PP3: 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

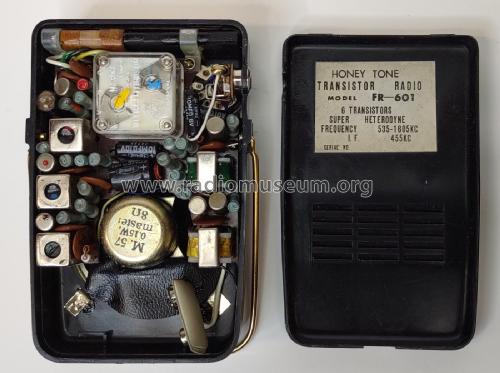

- Model: FR-601 - Honeytone Honey Tone; San
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
One out of several similar FR-601 types: Honey Tone, Windsor, Pacific, Summit, Roberts.
Made in Hong Kong
- Mentioned in
- Transistor Radios 1954-68 (p.106)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 609, Folder 7, Dec. 1962)
- Literature/Schematics (2)
- Collector's Guide To TrR1 Bunis trans.94 (1994 pg. 96; 1996 pg. 128)
- Literature/Schematics (3)
- Transistor Radios (1994 Lane, pg. 55-56)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
