Okean {Океан} 209 ASPP-2-2

Minsk Radio Works; Minsk

Data

Forum

Pictures

Collections

Country
Soviet Union

Manufacturer / Brand
Minsk Radio Works; Minsk

Year
1976

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
82368

- alternative name: Industrial Union Horizont || Minsk Works "Kalibr"

Schematics

Okean {Океан} 209; Minsk Radio Works; (ID = 129007) Radio — Minsk Radio Works; Okean {Океан} 209 (3)

Okean {Океан} 209; Minsk Radio Works; (ID = 129008) Radio — Minsk Radio Works; Okean {Океан} 209 (3)

Okean {Океан} 209; Minsk Radio Works; (ID = 2220967) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 2220968) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 144388) Radio — Minsk Radio Works; Okean {Океан} 209 (1)
Kaunas Lithuania

Okean {Океан} 209; Minsk Radio Works; (ID = 128120) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 128119) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 128121) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 238516) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 238517) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 238518) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 327420) Radio — Minsk Radio Works; Okean {Океан} 209 (1)
own collection

Okean {Океан} 209; Minsk Radio Works; (ID = 386940) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 386941) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 386942) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 386943) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 877396) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 982900) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 1677199) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

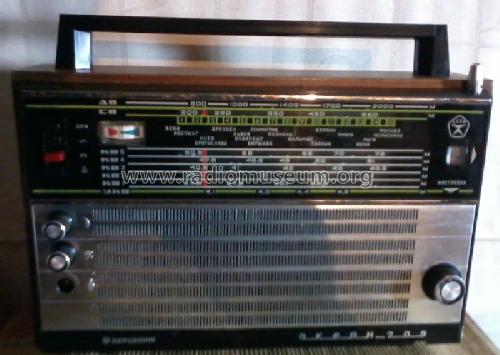

Okeah (Ocean) 209 USSR Model. Found locally.

Okean {Океан} 209; Minsk Radio Works; (ID = 1961343) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 1967482) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 1967484) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 1967485) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 1967486) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 1967487) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 1967489) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 2526251) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 2674161) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 2674162) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 2694762) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 2694763) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Okean {Океан} 209; Minsk Radio Works; (ID = 2694764) Radio — Minsk Radio Works; Okean {Океан} 209 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 450 kHz

Tuned circuits
11 FM circuit(s)

Wave bands
Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

Power type and voltage
Line / Batteries (any type) / 127; 220 / 6 × 1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

Power out
1 W (unknown quality)

Material
Various materials

from Radiomuseum.org
Model: Okean {Океан} 209 [ASPP-2-2] - Minsk Radio Works; Minsk

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
365 x 259 x 125 mm / 14.4 x 10.2 x 4.9 inch

Notes
20 Transistor,18 diodes. Some portable radio models "OKEAN" for export was named as "SELENA".

Net weight (2.2 lb = 1 kg)
4.6 kg / 10 lb 2.1 oz (10.132 lb)

Price in first year of sale
135.00 RUR

Source of data
-- Original-techn. papers.

Author
Model page created by Jukka Rajala. See "Data change" for further contributors.

Other Models
Here you find 93 models, 89 with images and 59 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
